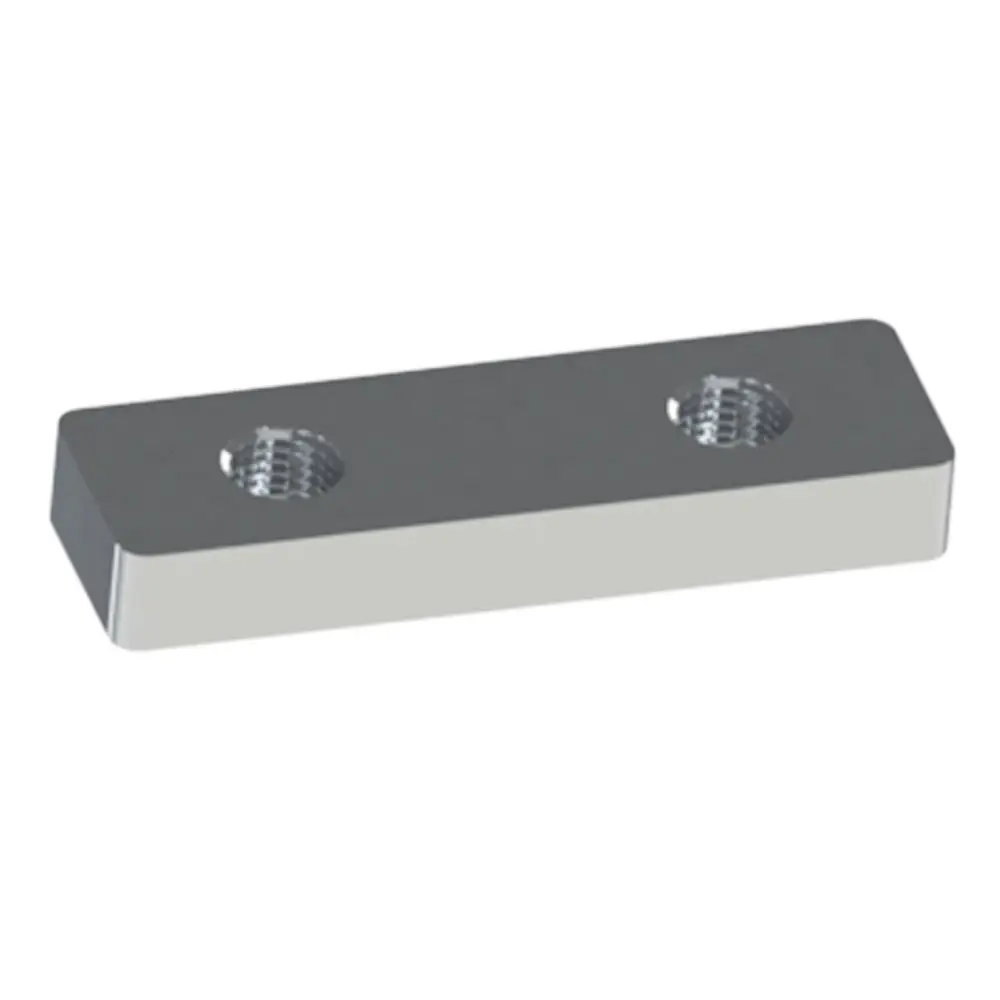

Double Square Nut M10 – BOB-KS2
The Importance of Safe Ceiling Installation in Cold Storage Facilities
As emphasized in ceiling suspension components such as the BOB-TAA101, cold room ceiling panel installation is a critical safety matter, not merely a construction step. Ceiling panels are exposed to:
- Their own dead weight
- Long-span suspension loads
- Temperature fluctuations
- Continuous mechanical stress over time
If suspension systems are not properly designed, ceiling panels may sag, joints may open, and structural safety may be compromised. These risks become significantly higher in long cold storage rooms exceeding 6 meters, where aluminum suspension profiles must be connected end to end.
This is exactly where the Double Square Nut M10 becomes essential.
What Is the Double Square Nut M10 Used For?
The Double Square Nut M10 is used in cold room ceiling installations together with Cold Room Ceiling Aluminum Suspension Profiles, specifically:
- BOB-7166 Cold Room Ceiling Aluminum Profile
- BOB-8010C Cold Room Ceiling Aluminum Profile
These aluminum profiles are typically manufactured in 6-meter lengths. However, many industrial cold storage facilities require ceiling systems that exceed this length. In such cases, two aluminum suspension profiles must be connected in sequence.
The Double Square Nut M10 is specifically designed to securely connect two 6-meter aluminum suspension profiles back to back, ensuring that the ceiling suspension system functions as a single continuous structural line.
Why Is It Essential in Long Cold Storage Rooms?
In long cold storage rooms or corridor-type cold rooms:
- A single aluminum profile is insufficient
- Multiple suspension profiles must be installed sequentially
- Profile joint points become critical structural zones
Without a proper connection element, these joint points may become weak links in the system. The Double Square Nut M10 eliminates this risk by reinforcing the connection between two aluminum profiles, ensuring continuous load transfer and structural integrity.
This makes it an indispensable component for long cold storage ceilings exceeding 6 meters.
Working Principle and Installation Logic
The Double Square Nut M10 is designed to fit precisely into the internal channel geometry of aluminum suspension profiles. Its square shape prevents rotation and ensures a stable connection inside the profile.
Installation steps:
- The first 6-meter aluminum ceiling suspension profile is installed
- The second 6-meter aluminum profile is positioned directly after the first
- The Double Square Nut M10 is inserted into the internal channel at the joint point
- The square geometry locks the nut in place, preventing rotation
- An M10 threaded metal rod is installed through the system
- The rod connects the joined profiles securely to the upper structural framework
Through this method, two separate aluminum profiles function as one continuous suspension system.
Contribution to Structural Safety
The most important advantage of the Double Square Nut M10 is its ability to maintain structural continuity in long ceiling systems.
This results in:
- No sagging at profile joint points
- Continuous and uniform load distribution
- Consistent load-bearing capacity along the entire ceiling
- Reduced long-term deformation risk
In long cold storage facilities, these advantages directly translate into higher safety, longer service life, and reduced maintenance needs.
Material Structure and Durability
The Double Square Nut M10 (Bob-Ks2) is manufactured using materials specifically selected for cold storage environments. It is produced from:
- Galvanized steel sheet, or
- Stainless steel sheet
Material benefits include:
- High corrosion resistance
- Long service life in cold and humid environments
- Excellent mechanical strength
- Resistance to deformation under continuous load
This ensures reliable performance even under demanding cold storage conditions.
Mandatory Component in Long Aluminum Suspension Systems
In ceiling suspension systems where aluminum profiles are connected end to end, the Double Square Nut M10 is not optional. It is a mandatory fastening element for:
- Long cold storage ceilings
- Wide-span ceiling suspension systems
- Industrial cold room installations
Without this component, profile connections cannot provide sufficient mechanical safety.
Application Areas
The Double Square Nut M10 (Bob-Ks2) is widely used in:
- Large cold storage facilities
- Long cold room ceilings exceeding 6 meters
- Industrial cold rooms
- Aluminum ceiling suspension systems
- Food storage and processing plants
- Logistics and distribution centers

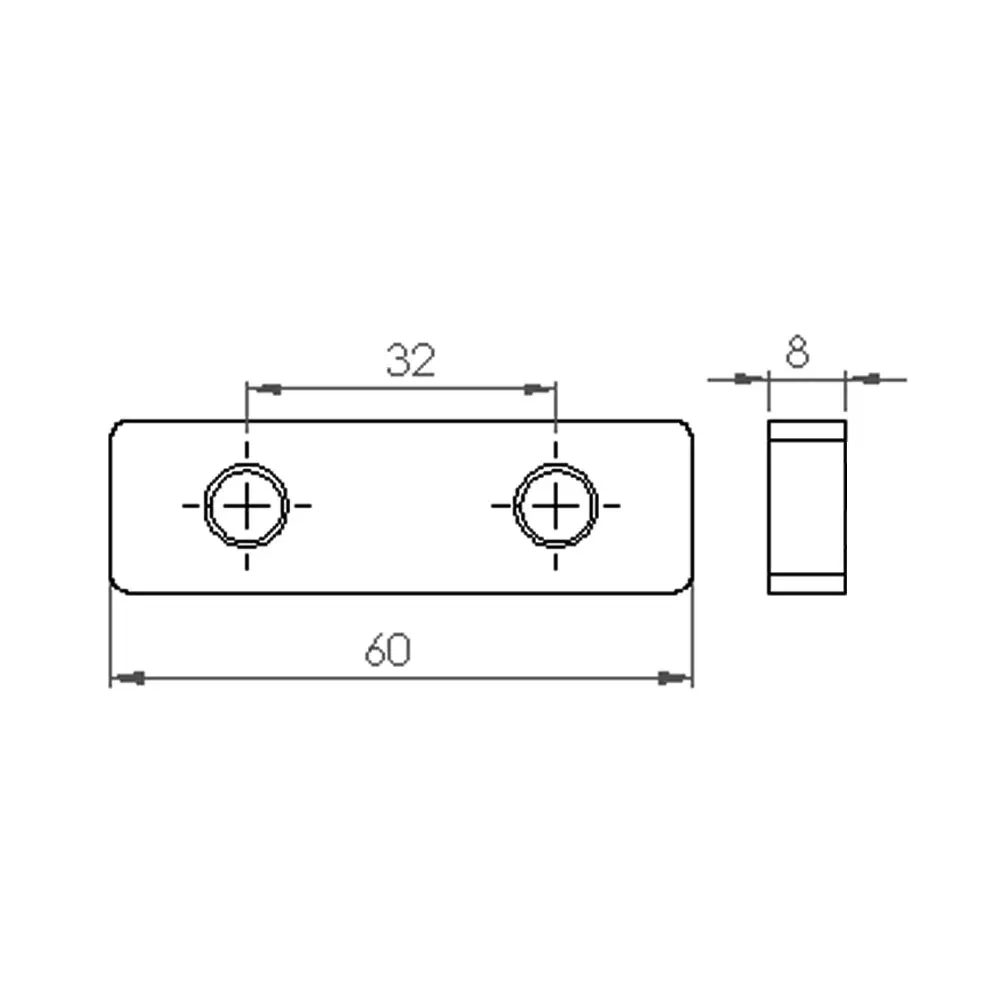

Technical Specifications
- Product Name: Double Square Nut M10
- Manufacturer: Bob Modüler
- Product Code: Bob-Ks2
- Material: Galvanized steel or stainless steel
- Thread Type: M10
- Function: Connecting two aluminum suspension profiles
- Application: Long cold storage ceiling systems
Conclusion
The Double Square Nut M10 (Bob-Ks2) is a vital fastening component that guarantees the continuity, strength, and safety of cold storage ceiling suspension systems. By securely connecting two 6-meter aluminum suspension profiles, it allows long cold storage ceilings to function as a single, uninterrupted structural system.
Thanks to its durable metal construction, precise fit within aluminum profile channels, and compatibility with M10 threaded rods, the Double Square Nut M10 is an essential solution for professional cold storage installations. Manufactured by Bob Modüler, it provides reliability and safety where long-span ceiling performance is critical.
