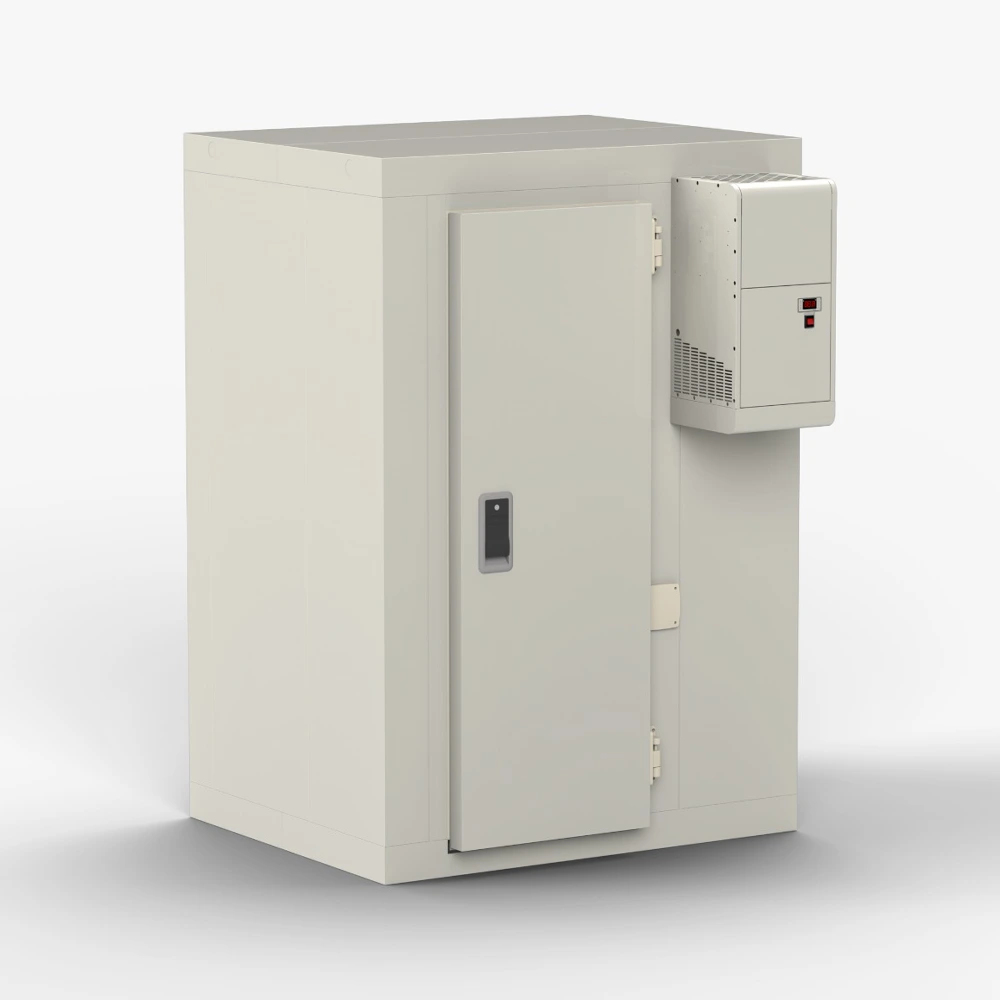

Modular Panel System with Locking Mechanism – BOB-MOD01
The structural foundation of the BOB-MSHD100 Modular Cold Storage Room consists of high-density polyurethane-filled modular panels. These panels are connected using the BOB-MOD01 cold room panel lock system, allowing installation without bolts or silicone.
The cold room panel lock BOB-MOD01, also referred to as a cold room modular panel lock, ensures a tight and secure connection between panels, preventing air leakage and thermal bridging. This system significantly improves energy efficiency and ensures long-term structural stability for cold storage and cold room applications.
Standard Panel Dimensions:
- Wall panels: 30 – 60 – 90 cm
- Corner panels: 45 × 15 cm
These standardized dimensions, combined with the BOB-MOD01 cold room panel lock, allow easy expansion, relocation, or reconfiguration of the cold storage room as operational needs evolve.
High-Density Polyurethane Insulation
The panels used in the BOB-MSHD100 Modular Cold Storage Room feature 42 kg/m³ density polyurethane insulation, providing excellent thermal resistance and minimizing heat transfer.
Panel Thickness Options:
- 80 mm
- 100 mm
For frozen storage and deep-freeze cold room applications, 100 mm panels combined with the BOB-MOD01 cold room modular panel lock deliver maximum insulation performance and energy efficiency.
Hygienic Design and Surface Quality
Hygiene is a critical factor in cold storage and food preservation environments. All internal corners of the BOB-MSHD100 Modular Cold Storage Room are designed with rounded and hygienic profiles, preventing dirt and bacteria accumulation.
All internal and external surfaces are manufactured from painted galvanized steel, offering:
- Corrosion resistance
- Easy cleaning
- Long service life
An optional stainless steel floor is available for applications requiring enhanced durability and hygiene, particularly in high-traffic cold storage and cold room environments.
Cold Room Hinged Door System – BOB-MK100
The BOB-MSHD100 Modular Cold Storage Room is fully compatible with various door systems. The most commonly used option is the cold room hinged door – BOB-MK100, designed for intensive daily use.
Advantages of the BOB-MK100 Cold Room Hinged Door:
- Ideal for frequent entry and exit
- High sealing performance for cold storage and cold room applications
- Equipped with silicone magnetic door gasket and sweep gasket
- Reliable operation in positive and negative temperature environments
The BOB-MK100 cold room hinged door works seamlessly with the BOB-MOD01 cold room panel lock system, maintaining stable internal temperatures and reducing energy loss.
Flush Mounted Cold Room Door Lock – BOB-5002
The BOB-MK100 cold room hinged door is equipped with the BOB-5002 cold room flush mounted door lock, designed for safety, durability, and hygiene.
Features of the BOB-5002 Cold Room Flush Mounted Door Lock:
- Flush installation with no surface protrusion
- High resistance to impact and mechanical damage
- Emergency internal release mechanism for user safety
- Suitable for cold storage and frozen room applications
The BOB-5002 cold room door flush lock integrates perfectly with the BOB-MK100 hinged door and the BOB-MOD01 cold room modular panel lock, ensuring a complete and secure cold room system.
Flexible Height and Configuration Options
The BOB-MSHD100 Modular Cold Storage Room is available in:
- 200 cm
- 220 cm
height options, allowing seamless adaptation to different facility layouts. Silicone magnetic door gaskets ensure airtight sealing in combination with the BOB-5002 flush mounted door lock, minimizing cold air leakage.
Cooling System and Energy Efficiency
The system is equipped with a monoblock refrigeration unit, offering:
- Compact design
- Fast installation
- Quick commissioning
The refrigeration system features:
- 150 g refrigerant
- Digital temperature display
The digital controller allows precise monitoring and adjustment of internal temperatures. Combined with high-density insulation, the BOB-MOD01 cold room panel lock, BOB-MK100 cold room hinged door, and BOB-5002 flush mounted door lock, the system delivers high energy efficiency and reduced operating costs.
Applications
- Food processing and storage facilities
- Meat and dairy cold storage rooms
- Fruit and vegetable storage
- Pharmaceutical and medical warehouses
- Logistics and distribution centers
- Industrial cold storage and cold room projects
Conclusion
The Modular Cold Storage Room – BOB-MSHD100 is a complete professional solution integrating the BOB-MOD01 cold room panel lock, BOB-MK100 cold room hinged door, and BOB-5002 cold room flush mounted door lock into a single, efficient modular system. With superior insulation, hygienic design, flexible configuration, and high energy efficiency, it is an ideal investment for modern cold storage and cold room applications requiring reliability, scalability, and long-term performance.
