Purpose-Built for Compact Cold Storage Ceiling Panels
In cold storage construction, ceiling panels are among the most critical structural elements. They must remain stable over time while resisting gravity, temperature variations, and long-term mechanical stress. For large and thick panels, standard suspension brackets are ideal. However, for smaller cold rooms and thinner ceiling panels, a more compact solution is required.

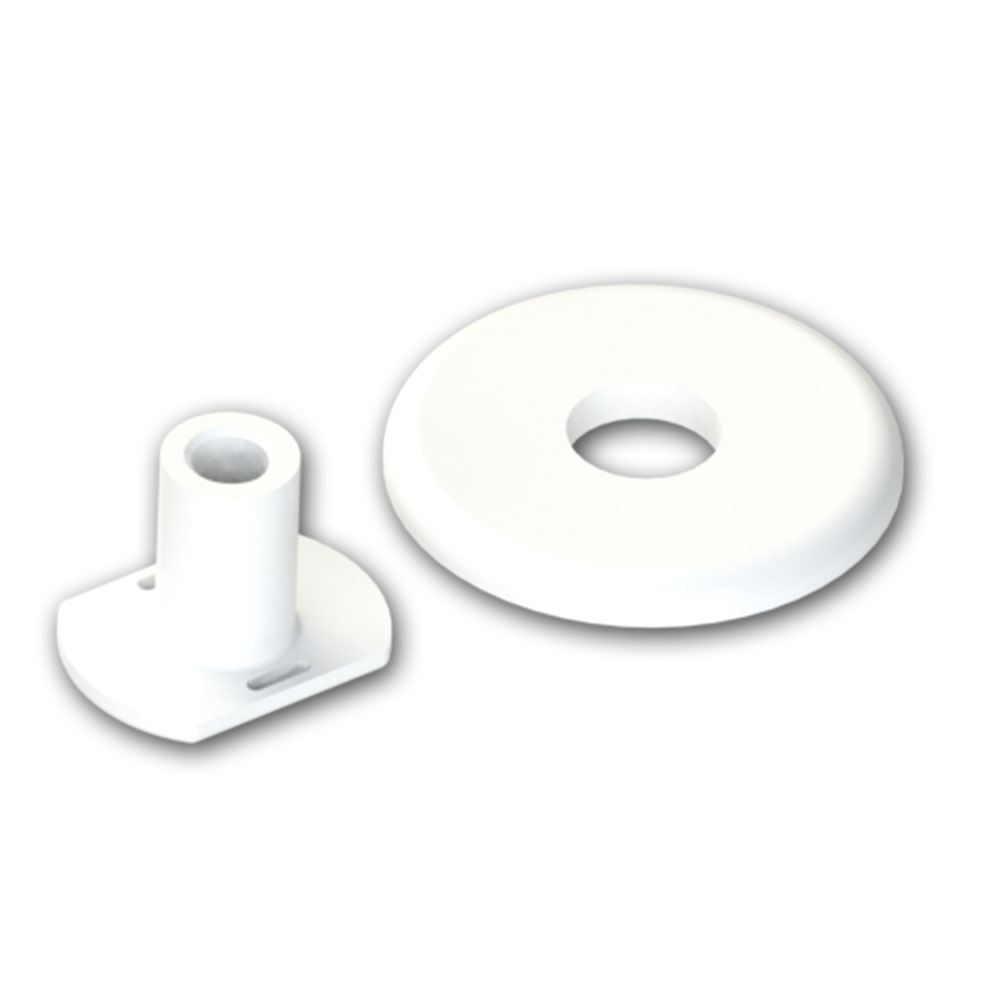

The BOB-TAA-202 Cold Storage Ceiling Mounting Bracket is specifically engineered for:
- Small-sized cold rooms
- Thin ceiling panel applications
- Projects with limited installation depth
- Lightweight ceiling panel systems
By using a nutless structure with an integrated M10 thread, the bracket delivers reliable support without overloading or damaging thinner panels.
How the Cold Storage Ceiling Mounting Bracket Works
The installation principle of the Cold Storage Ceiling Mounting Bracket (BOB-TAA-202) is identical to standard ceiling suspension systems, with a simplified internal structure.
Installation process:
- Cold storage ceiling panels are installed in position
- A suspension point is identified on the ceiling panel
- The mounting bracket is placed between the panel and the upper structural framework
- An M10 threaded metal rod is screwed directly into the M10 thread formed inside the plastic body
- The upper end of the threaded rod is fixed to the building’s structural system
Because the M10 thread is directly molded into the plastic composite body, no additional nut or adapter is required. This allows for faster installation and reduced component complexity.
Nutless Design with Integrated M10 Thread
The defining feature of the BOB-TAA-202 Cold Storage Ceiling Mounting Bracket is its nutless construction. Instead of housing a metal nut, the bracket body itself contains a precision-formed M10 internal thread.
This design offers several advantages:
- More compact and lightweight structure
- Ideal for thinner ceiling panels
- Fewer components required during installation
- Faster and cleaner assembly process
- Reduced risk of loose internal parts
Despite its compact size, the bracket maintains excellent load-bearing performance thanks to its reinforced plastic composite material.
High-Strength Engineering Plastic Composite Material
The Cold Storage Ceiling Mounting Bracket is manufactured from a special engineering-grade plastic composite, identical to the material used in larger ceiling suspension models.
Material benefits include:
- High load-bearing capacity
- Resistance to deformation under continuous load
- Excellent performance in low-temperature environments
- Corrosion-free and rust-free structure
This material choice ensures that the bracket performs reliably in cold storage conditions while remaining lightweight and hygienic.
Hygienic Structure for Food and Medical Storage
Cold storage facilities are commonly used for food, pharmaceutical, and medical products, where hygiene is a strict requirement. The Cold Storage Ceiling Mounting Bracket (BOB-TAA-202) is designed to fully comply with these standards.
Hygienic advantages:
- Non-porous surface structure
- Does not trap dirt or bacteria
- Easy to clean and maintain
- Suitable for food-grade environments
The absence of internal metal components further reduces potential contamination points, making the product ideal for hygienic cold storage applications.
Prevents Ceiling Panel Sagging and Structural Deformation
Even lightweight ceiling panels can deform or sag over time if they are not properly supported. The Cold Storage Ceiling Mounting Bracket ensures that panel loads are safely transferred to the upper structure.
Key structural benefits include:
- Prevention of downward panel movement
- Maintained panel alignment
- Reduced stress on panel joints
- Improved long-term ceiling stability
By maintaining the integrity of ceiling panels, the bracket also helps preserve insulation performance and energy efficiency.
Multi-Purpose Use Beyond Ceiling Panels
In addition to ceiling panel suspension, the BOB-TAA-202 Cold Storage Ceiling Mounting Bracket is widely used in other cold room installation applications where a compact, nutless M10 connection is required.
These include:
- Mounting cold room door frames to panels
- Installing upper aluminum rails for sliding cold room doors
- Supporting lightweight structural components inside cold rooms
The compact design allows the bracket to be used in tight spaces without compromising strength or reliability.
Application Areas
The Cold Storage Ceiling Mounting Bracket (BOB-TAA-202) is commonly used in:
- Small and medium-sized cold storage rooms
- Modular cold rooms with thin ceiling panels
- Food storage and processing facilities
- Pharmaceutical and medical cold storage areas
- Cold room door frame installations
- Sliding cold room door rail systems

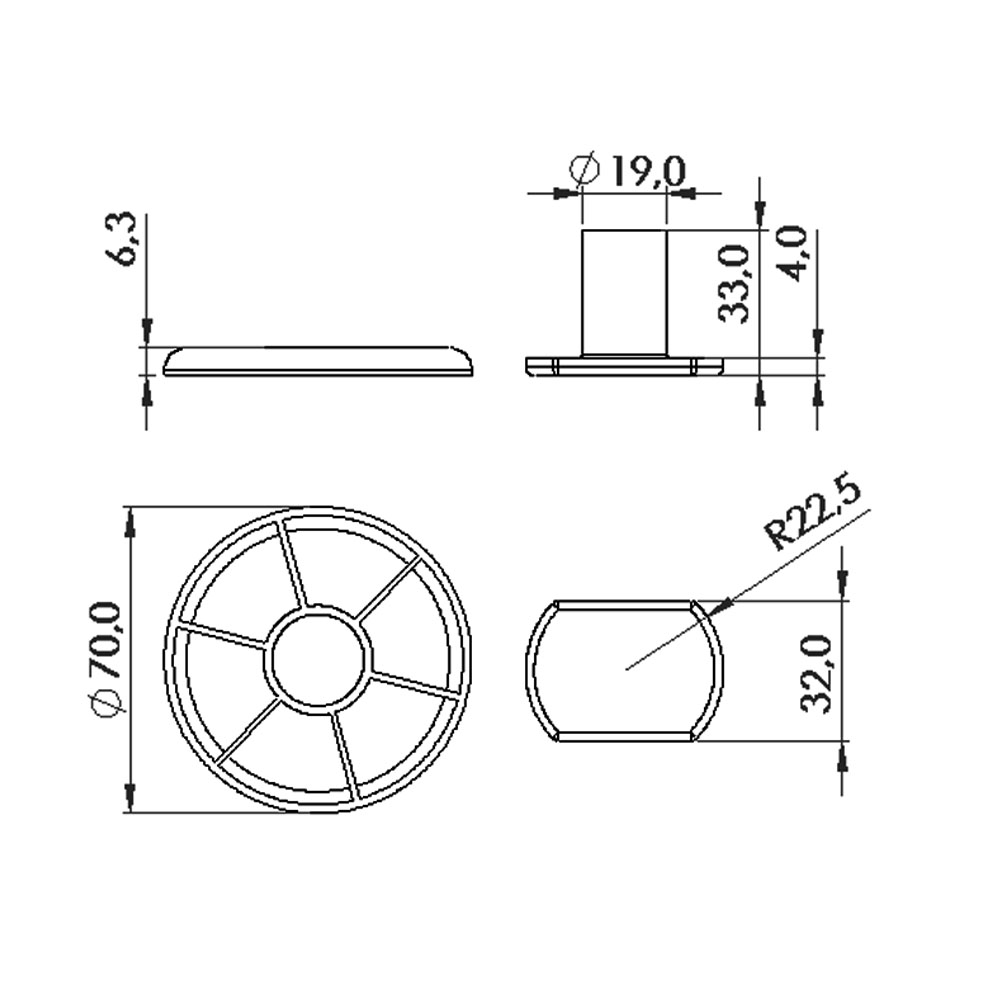

Technical Specifications
- Product Name: Cold Storage Ceiling Mounting Bracket
- Manufacturer: Bob Modüler
- Product Code: BOB-TAA-202
- Material: Engineering-grade plastic composite
- Connection Type: Integrated M10 internal thread (nutless)
- Function: Ceiling panel suspension and light structural mounting
- Design: Compact and lightweight
Conclusion
The Cold Storage Ceiling Mounting Bracket (BOB-TAA-202) is a compact, hygienic, and efficient suspension solution designed for thin ceiling panels and space-limited cold storage installations. Its nutless design with an integrated M10 thread simplifies installation while maintaining high structural reliability.
Manufactured by Bob Modüler, this product offers dependable performance for ceiling suspension, door frame mounting, and sliding door rail installation in modern cold storage facilities. It is an ideal choice for projects that require a clean, compact, and professional ceiling mounting solution.
