Sliding Door Frame Pvc Profile Extension Part

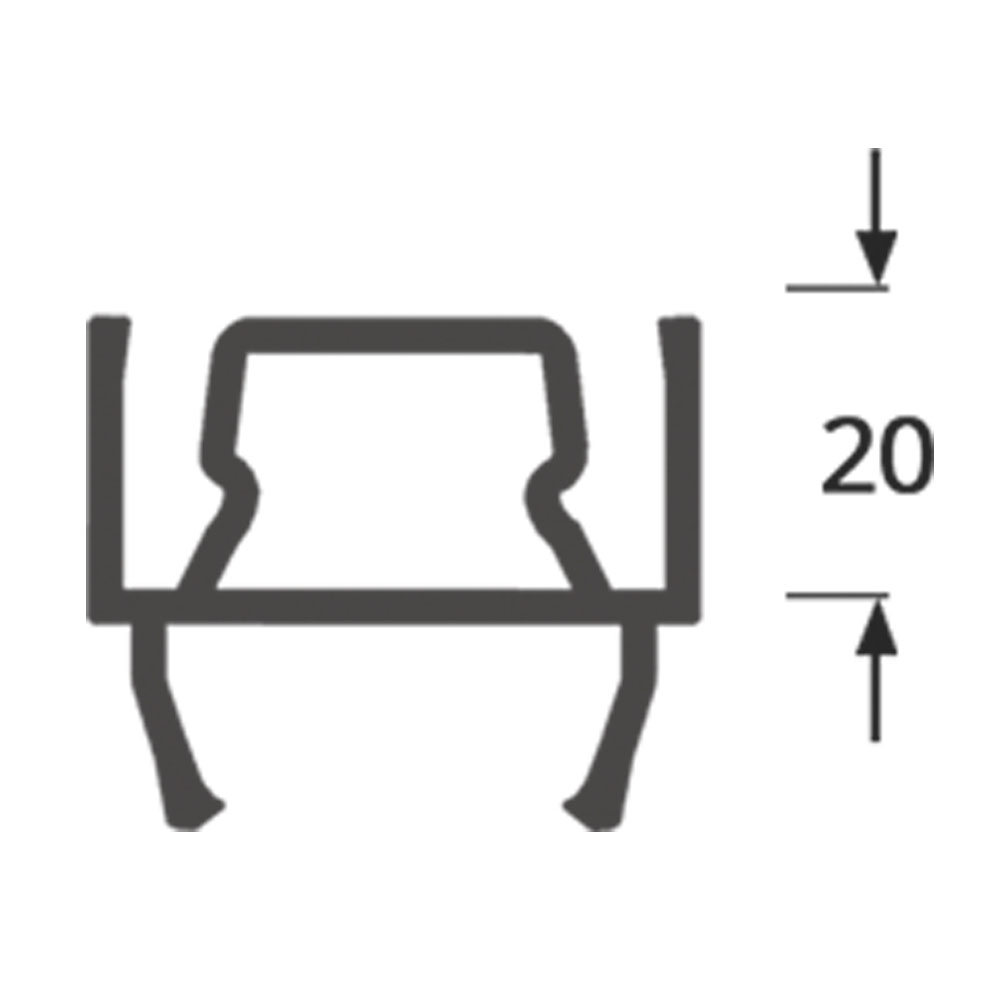

Purpose of the 20 mm Extension Profile
The 20 mm extension profile is installed onto the main PVC frame profile to extend the total frame depth by 20 mm. This function allows manufacturers and installers to:
- Adapt cold room sliding door frames to different wall panel thicknesses
- Eliminate gaps between the door frame and wall panels
- Ensure uniform contact between door gaskets and the frame
- Prevent cold air leakage and thermal loss
- Achieve a clean, stable, and professional frame appearance
BOB-10012 is particularly preferred in projects where fine depth adjustment is required without using larger extension profiles.
Use in Cold Room Sliding Door Frame Systems
Cold room sliding door frames differ from hinged door frames due to the horizontal movement of the door leaf along the rail system. Any mismatch between the frame depth and wall panel thickness can cause several operational and insulation problems, such as:
- Misalignment of the sliding door leaf
- Uneven gasket pressure along the frame
- Cold air leakage and frost formation
- Increased energy consumption
- Reduced service life of door components
The BOB-10012 PVC Frame Profile eliminates these issues by ensuring that the sliding door frame depth precisely matches the cold room wall panel thickness.
Compatible PVC Frame Profiles
The BOB-10012 – 20 mm Extension Profile is fully compatible with Bob Modüler’s modular PVC frame system developed for cold room sliding doors. It integrates seamlessly with the following profiles:
- BOB-10063 – PVC frame profile for cold room sliding doors
- BOB-10014 – PVC rear return / rear cover profile
- BOB-10027 – Header profile used at the upper section of sliding door frames
- BOB-10028 – 60 mm PVC extension profile
- BOB-10110 – 30 mm PVC extension profile
This compatibility allows BOB-10012 to be used alone or in combination with other extension profiles to achieve the exact frame depth required by each project.
Role in Modular Frame Systems
The BOB-10012 PVC Frame Profile plays a key role in Bob Modüler’s modular PVC frame system. Modular systems offer significant advantages, including:
- Elimination of multiple fixed-depth frame profiles
- Simplified inventory management
- Faster production and installation processes
- Reduced risk of measurement and assembly errors
- Flexible adaptation to different wall panel thicknesses
By offering a 20 mm depth increase, BOB-10012 enables precise fine-tuning within the modular system.
Advantages of PVC Material
The BOB-10012 is manufactured from high-quality PVC material, which is widely preferred in cold room door frame applications due to its superior properties:
- Low thermal conductivity, preventing thermal bridges
- High resistance to moisture and condensation
- Hygienic and easy-to-clean surface
- Corrosion-free and non-oxidizing structure
- Long service life with minimal maintenance
These characteristics make PVC an ideal choice for PVC frame profiles, cold room PVC profiles, and cold storage sliding door frame systems.
Installation and Production Process
During the production of cold room sliding door frames, the BOB-10012 PVC Frame Profile is used as follows:
- The main PVC frame profile is cut according to door dimensions
- The frame structure is assembled
- The wall panel thickness is measured
- The 20 mm extension profile is added to the main frame using a snap-fit (hammer-in) method
- If required, additional 30 mm or 60 mm extension profiles can be combined
This installation method eliminates the need for welding and ensures fast, secure, and repeatable assembly.
Areas of Application
The BOB-10012 PVC Frame Profile is widely used in:
- Cold room sliding door frames
- Cold room monorail sliding door frames
- Cold room automatic sliding door frames
- Industrial cold storage facilities
- Food processing and logistics cold rooms
Technical Specifications
- Product Name: PVC Frame Profile
- Alternative Name: 20 mm Extension Profile
- Manufacturer: Bob Modüler
- Product Code: BOB-10012
- Material: PVC
- Extension Size: 20 mm
- Application: Cold room sliding door frame systems
- Compatible Profiles:
- BOB-10063
- BOB-10014
- BOB-10027
- BOB-10028
- BOB-10110
- Installation Method: Snap-fit (hammer-in)
- System Type: Modular PVC frame system
Conclusion
The PVC Frame Profile (BOB-10012) is a precise and flexible solution for adjusting frame depth in cold room sliding door systems. As a 20 mm extension profile, it provides accurate alignment, reliable sealing performance, and full compatibility with modular PVC frame systems. Manufactured by Bob Modüler, BOB-10012 supports efficient installation, long-term durability, and high energy efficiency in modern cold storage projects.
