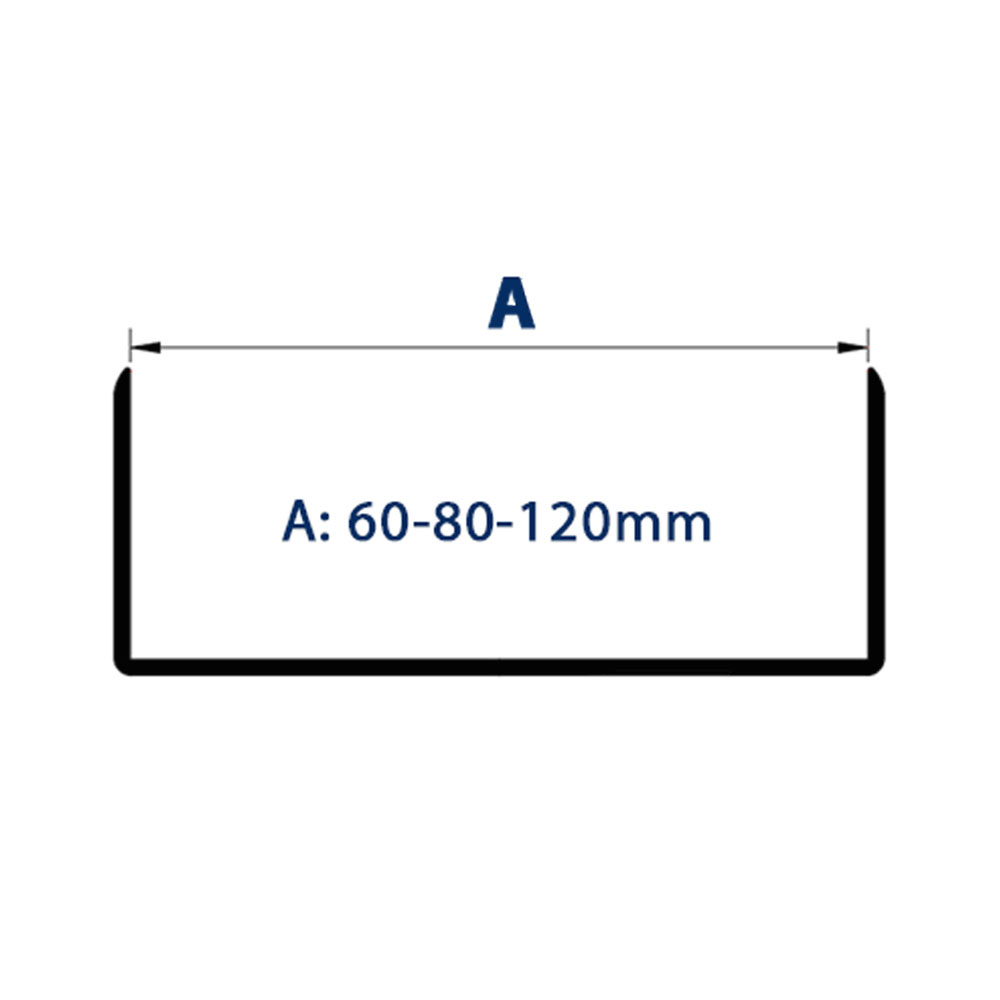

What Is a U-Type Frame Profile?
A U-Type Frame Profile is a profile that transforms a cold room wall panel into a door frame by wrapping the panel edges with its U-shaped structure. In this system:
- The panel edges remain fully enclosed
- No additional main frame profile is required
- The wall panel itself becomes the door frame
The BOB-102 PVC Frame Profile operates exactly with this principle, enclosing the cold room panel through its U geometry and completing the panel covering and frame-forming process in a single step. Its availability for 60 mm, 80 mm, 100 mm, and 120 mm panel thicknesses makes on-site application significantly easier and more flexible.
Purpose of Use in Cold Room Door Frames
Cold room door frames play a critical role in ensuring smooth door operation, proper gasket compression, and continuous thermal insulation. The primary purposes of BOB-102 include:
- Covering the cold room wall panel to form a door frame
- Protecting the panel edges
- Creating a clean and hygienic transition between the panel and the door
- Providing a solid reference surface for the door leaf
With these features, the PVC Frame Profile (U-Type Frame Profile) serves as a practical alternative to traditional PVC or aluminum door frame systems, offering flexibility through its multiple panel thickness options.
Compatibility with All Cold Room Door Types
Thanks to its simple yet adaptable geometry, BOB-102 can be used in the frames of all cold room door types, including:
- Cold room hinged doors
- Cold room sliding doors
- Cold room automatic sliding doors
- Cold room monorail sliding doors
Regardless of the door type, whenever a frame is intended to be created directly from the wall panel, the BOB-102 U-Type Frame Profile, compatible with 60 mm, 80 mm, 100 mm, and 120 mm thick cold room wall panels, can be used with confidence.
Panel Covering and Aesthetic Advantages
When a door opening is created by cutting cold room wall panels, the metal edges of the panel remain exposed. This can lead to:
- An aesthetically weak appearance
- Hygienic disadvantages
- Long-term damage to panel edges
The BOB-102 PVC Frame Profile completely encloses the panel edges with its U-shaped design, delivering:
- A clean and uniform frame appearance
- Protection of panel edges against external factors
- A professional and finished door frame look
Thermal Insulation and Prevention of Thermal Bridges
Door frames are among the most critical points for heat loss in cold room systems. Especially in panel-based frames, exposed metal surfaces can easily create thermal bridges.
The PVC Frame Profile (BOB-102):
- Acts as an insulating barrier due to the low thermal conductivity of PVC
- Reduces heat transfer at the frame-to-panel junction
- Limits cold air transfer from the interior to the exterior
As a result, the internal temperature of the cold room remains more stable, improving overall energy efficiency.
Advantages of PVC Material
The PVC material used in the production of BOB-102 is highly suitable for cold room applications:
- Low thermal conductivity
- Resistance to moisture and condensation
- Corrosion-free structure
- Hygienic and easy-to-clean surface
- Long service life
These characteristics make the PVC frame profile ideal for food storage, logistics, and industrial cold storage facilities.
Easy Installation and Practical Application
The BOB-102 U-Type Frame Profile significantly simplifies installation in panel-based frame systems. The general application process is as follows:
- The cold room wall panel is cut according to the door dimensions
- The panel edges are prepared
- BOB-102 is fitted onto the panel edges, enclosing the panel within the U structure
- The door frame is completed
This method eliminates the need for additional frame profiles, extension profiles, or complex installation steps.
Economical and Efficient Frame Solution
By reducing the number of required components, BOB-102 provides a highly economical door frame solution. With a single profile, it simultaneously achieves:
- Panel covering
- Frame formation
- Insulation support
This reduces both material costs and labor time.
Technical Specifications
- Product Name: PVC Frame Profile
- Alternative Name: U-Type Frame Profile
- Manufacturer: Bob Modüler
- Product Code: BOB-102
- Material: PVC
- Function: Panel covering + frame formation
- Compatible Panel Thicknesses: 60 mm, 80 mm, 100 mm, 120 mm
- Application Area: All cold room door frames
Conclusion
The PVC Frame Profile (U-Type Frame Profile) – BOB-102 is a practical, economical, and highly functional solution that transforms cold room wall panels into complete door frames. Its compatibility with 60 mm, 80 mm, 100 mm, and 120 mm thick cold room wall panels, combined with ease of installation, insulation benefits, and aesthetic finish, makes it a reliable choice for all cold room door applications. Manufactured with Bob Modüler quality standards, BOB-102 is a strong and versatile frame profile suitable for modern cold storage projects.
