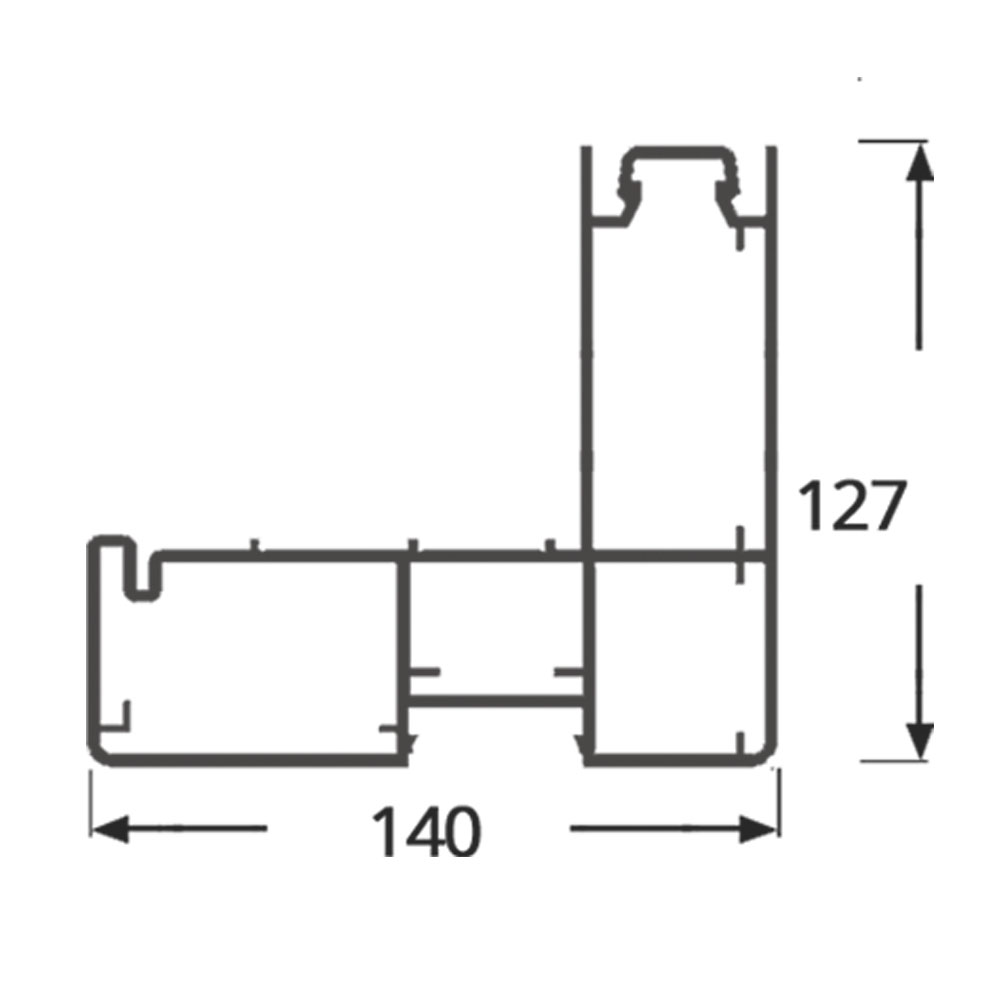

Sliding Door Frame Pvc Profile (Main Part 80 mm) – BOB-10063
Designed for Cold Room Sliding Door Systems
Unlike hinged doors, Cold Room Sliding Doors operate horizontally along rail or monorail systems. This operating principle places unique requirements on the surrounding frame profile. The frame must maintain continuous gasket contact during movement and remain stable under repeated opening and closing cycles.
For this reason, frame profiles used in Cold Room Sliding Door systems must:
- Fit perfectly with cold room wall panels
- Maintain stable gasket pressure along the sealing line
- Prevent freezing and icing in low-temperature environments
- Withstand mechanical stress caused by door movement
The BOB-10063 PVC Frame Profile is specifically designed to satisfy these requirements and provide reliable performance in Cold Room Sliding Door, Cold Room Automatic Sliding Door, and Cold Room Monorail Sliding Door applications.
Advantages of PVC Material in Cold Room Frame Profiles
PVC is widely preferred in cold room frame systems due to its excellent physical and thermal characteristics. The main advantages of PVC include:
- Low thermal conductivity, minimizing thermal bridges
- High resistance to moisture and condensation
- Hygienic, smooth, and easy-to-clean surface
- Corrosion-free structure
- Long service life with minimal maintenance
By utilizing high-quality PVC raw material, BOB-10063 PVC Frame Profile ensures consistent performance and reliability in demanding cold storage environments.
Modular Structure with Extension Profiles
One of the key strengths of BOB-10063 is its modular frame structure, which allows easy adaptation to different cold room wall panel thicknesses.
The following extension profiles are used within this system:
- 20 mm Extension Profile (BOB-10012)
- 30 mm Extension Profile (BOB-10110)
- 60 mm Extension Profile (BOB-10028)
These extension profiles enable the frame depth to be increased incrementally according to the thickness of the cold room wall panels.
How the Modular System Works
- The main PVC frame profile serves as the base component
- Extension profiles are selected based on wall panel thickness
- Profiles are cut at 45-degree angles for precise corner joints
- Installation is carried out using a snap-fit (hammer-in) method, without welding
- Multiple extension profiles can be combined to achieve the required depth
This modular approach offers significant benefits:
- A single base profile supports multiple panel thicknesses
- Faster production and installation processes
- Reduced inventory complexity
- Flexible application in different cold room projects
Rear Return Profile for Structural Completion
To achieve a clean and structurally complete finish on the wall side, a rear return profile is used. In the BOB-10063 system, the designated rear return profile is:
- BOB-10014
This profile is:
- Cut at 45-degree angles
- Welded into a rectangular frame
- Installed onto the extension profiles using the snap-fit method
This ensures a neat appearance and a mechanically stable frame structure.
Integrated Heater Cable Channel
In low-temperature applications, Cold Room Sliding Doors are exposed to frost formation and gasket freezing. To eliminate these issues, BOB-10063 PVC Frame Profile includes an integrated heater cable channel located on the front side of the profile.
This channel allows:
- Safe placement of the heater cable
- Prevention of gasket sticking to the frame
- Smooth and uninterrupted door operation
The heater channel is closed using an aluminum heater channel profile (BOB-10002). Aluminum’s high thermal conductivity ensures even heat distribution along the sealing surface, effectively preventing ice formation.
Production Process Using PVC Frame Profile
The frame production process using BOB-10063 follows a clear and efficient workflow:
- The PVC frame profile is cut to size using 45-degree angle cuts
- Frame corners are assembled using PVC welding or mechanical assembly accessories
- Extension profiles are added according to wall panel thickness
- The rear return profile is installed to complete the structure
- The heater cable channel is closed with the aluminum profile
The result is a ready-to-install frame system suitable for Cold Room Sliding Door applications.
Areas of Application
BOB-10063 PVC Frame Profile is widely used in the following applications:
- Cold Room Sliding Door systems
- Cold Room Automatic Sliding Door systems
- Cold Room Monorail Sliding Door systems
- Industrial cold storage facilities
- Food processing and logistics cold rooms
Technical Specifications
- Product Name: PVC Frame Profile
- Manufacturer: Bob Modüler
- Product Code: BOB-10063
- Material: PVC
- Door Type Compatibility:
- Cold Room Sliding Door
- Cold Room Automatic Sliding Door
- Cold Room Monorail Sliding Door
- Extension Profiles:
- 20 mm (BOB-10012)
- 30 mm (BOB-10110)
- 60 mm (BOB-10028)
- Rear Return Profile: BOB-10014
- Heater Channel Cover: Aluminum profile BOB-10002
- System Type: Modular PVC frame system
Conclusion
The PVC Frame Profile (BOB-10063) is a durable, modular, and technically advanced solution developed for Cold Room Sliding Door systems. Its compatibility with multiple extension profiles, clean rear return finishing, and integrated heater cable channel make it an ideal choice for modern cold storage applications. By preventing freezing, maintaining gasket performance, and simplifying installation, BOB-10063 ensures long-term reliability and energy efficiency. Manufactured by Bob Modüler, this PVC frame profile meets international standards for Cold Room Sliding Door, Cold Room Automatic Sliding Door, and Cold Room Monorail Sliding Door applications.
